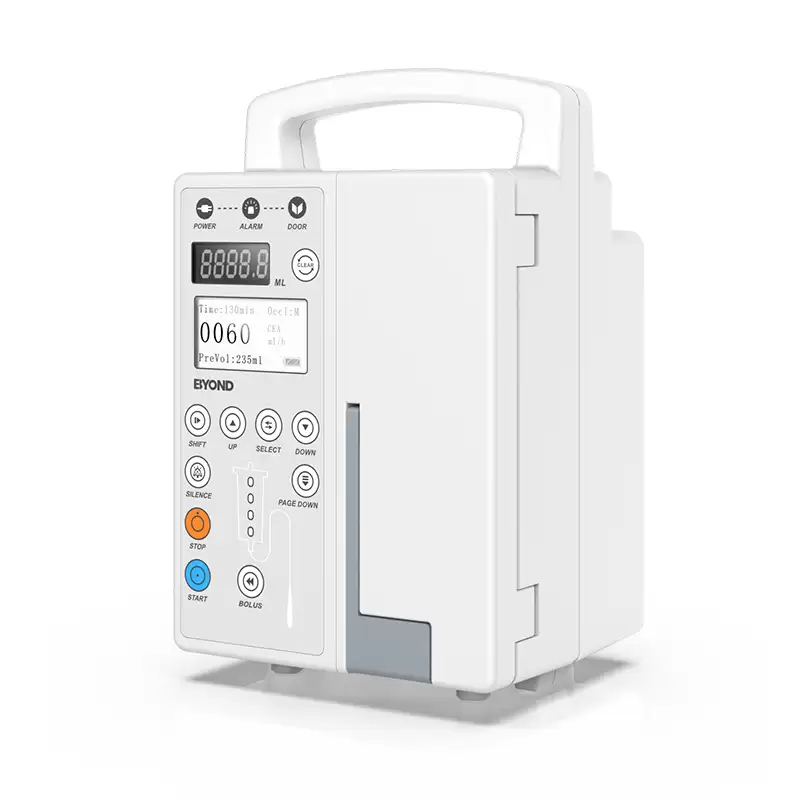

Hunan Beyond BYS 820 Infusion Pump

The Hunan Beyond Infusion Pump BYS 820 is a high-precision medical device designed for safe and accurate fluid infusion. With an HD LCD display, user-friendly interface, and advanced alarm system, this infusion pump ensures seamless operation in clinical settings.

Key Features:

✅ HD LCD Display – Clear interface with real-time working status
✅ Advanced Alarm System – Audible & visual alerts for occlusion, low battery, empty infusion, door open, and more
✅ Universal Compatibility – Works with all major infusion sets after calibration
✅ Dual Work Modes – Easily switch between ml/h and drop/min infusion rates
✅ Three Occlusion Levels – High, medium, and low settings for customized infusion control
✅ KVO (Keep-Vein-Open) Function – Automatically maintains a minimal flow post-infusion
✅ Purge Function – Enables rapid priming of the infusion line
✅ Memory Function – Automatically records the last infusion settings for convenience
✅ Power Supply – AC 100-240V & internal rechargeable battery for up to 4 hours of backup

Specifications:

📌 Flow Rate: 1ml/h – 1,200ml/h (Accuracy: ±5%)
📌 Infusion Volume: 1ml – 9999ml
📌 Total Infusion Volume: 0.1ml – 9999.9ml
📌 Purge Rate: 100ml/h – 1,000ml/h
📌 KVO Rate: 1ml/h – 5ml/h
📌 Occlusion Pressure: High (800mmHg), Medium (500mmHg), Low (300mmHg)
📌 Bubble Detection: Ultrasonic wave detector (≥25μL sensitivity)
📌 Alarm System: Human voice alerts for occlusion, air bubbles, incorrect settings, low battery, and power disconnection
📌 Power Consumption: 18VA
📌 Classification: Class II, Type CF, IPX4 water resistance

Compact & Lightweight Design:

📏 Dimensions: 153mm (L) × 162mm (W) × 227mm (H)
⚖ Weight: 1.8kg
